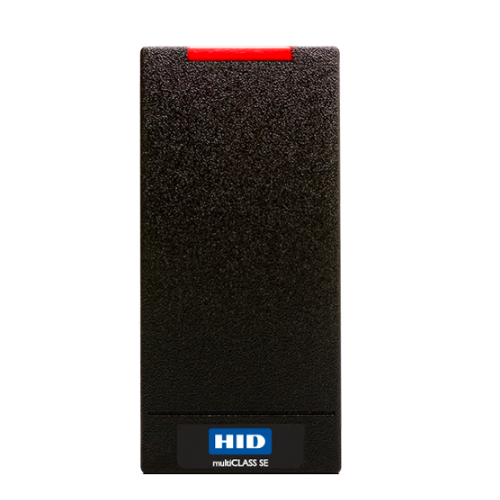

RP10 multiClass Card Reader | Smart Card 13.56 Mhz | HID
Product Name | RP10 multiClass Card Reader | Smart Card 13.56 Mhz | HID |
---|---|
Weight | 1.000000 |
Brand | HID |
Test Certificate | No |
COUNTRY OF MANUFACTURE | India |
Model | 900PTNNEK00000- |
HSN Code | 84719010 |
Warranty | 6 Months |
Freight | To pay by Customer, extra at actuals. Godown Delivery |
Category | Fire Safety, Access Control System, Biometric, Reader |
Product Code | CPK-0003 |
• RP10 multiClass Card Reader | Smart Card 13.56 Mhz | HID
HIGHLY ADAPTABLE AND SECURE HIGH FREQUENCY
ACCESS CONTROL SOLUTION
• Powerfully Secure – Provides layered security beyond the card media for added protection to identity data using SIOs.
• Adaptable – Interoperable with a growing range of technologies (iCLASS® SeosTM and iCLASS SE® credential platforms, standard iCLASS®, MIFARE®, and MIFARE® DESFire® EV1 with custom data models) and form factors including mobile devices utilizing SeosTM.
• Interoperable – Open Supervised Device Protocol (OSDP) for secure, bidirectional communication.
• Streamlined Migration – Simultaneous support for 125 kHz HID Prox®, Indala®, AWID and EM4102 for seamless migration; field programmable for secure upgrades andextended lifecycle.
HID Global’s iCLASS SE® platform goes beyond the traditional smart card model to offer a secure, standards-based and flexible platform that has become the new benchmark for highly adaptable, interoperable
and secure access control solutions.
multiCLASS SE® readers simplify migration from legacy technologies with support 125 kHz for HID Prox, Indala, AWID and EM4102, and provide customers the assurance that their existing investments can be leveraged to enhance their system as business requirements change. The technology-independent readers also support iCLASS® SeosTM and iCLASS SE credential platforms, as well as standard iCLASS, MIFARE andMIFARE DESFire EV1 with custom data
models and other leading technologies.
Additionally, multiCLASS SE readers support mobile devices utilizing Seos, enabling a new class of portable identity credentials that can be securely provisioned and safely embedded into both fixed and mobile devices.
As part of HID Global’s iCLASS SE platform that is based on the Secure Identity ObjectTM (SIO®) data model and Trusted Identity Platform® (TIPTM), the powerfully secure multiCLASS SE readers offer advanced features such as layered security beyond the card media and tamper-proof protection of keys/cryptographic operations using EAL5+ secure element hardware.
POWERFULLY SECURE:
• Multi-Layered Security – Ensures data authenticity and privacy through the multilayered security of HID’s SIO.
• EAL5+ Certified Secure Element Hardware – Provides tamper-proof protection of keys/cryptographic operations.
• SIO Data Binding – Inhibits data cloning by binding an object to a specific credential.
• Secured communications using OSDP with Secure Channel Protocol.
HIGHLY ADAPTABLE:
• Mobile device support using card emulation - Enables HID access control.
• SIO Portability – Provides technology independence and portability to other smart card technologies.
• Upgradeable Hardware Connection – Allows all Wiegand-based communication readers to expand communication capabilities to OSDP, Hi-O and other bidirectional protocols.
• Field Programmable Readers – Provides secure upgrades for migration and extended lifecycle.
• Customization and management from a central location – Enables organization to make changes and manage all attached OSDP readers over RS485 wiring.
• Simultaneous support for 125kHz HID Prox, Indala, AWID and EM4102.
• Allows for support of future technologies.
SUSTAINABILITY AND MANAGEMENT:
• Intelligent Power Management (IPM) – Reduces reader power consumption by as
much as 75% compared to standard operating mode.
Recycled Content – Contributes toward building LEED credits.
INTEROPERABLE:
• SIO Media Mapping – Simplifies deployment of third-party objects to multiple types
of credentials.
• Industry standard communications using OSDP.
Custom programming support to read custom data models on MIFARE and MIFARE
• DESFire EV1 credentials.
Base Part Number | 900P 900L |
Typical Read Range* (inches) |
|
13.56 MHz Single Technology ID-1 Credentials (Cards) – SIO Model Data | iCLASS SE®: 2.6" (6.6 cm) SE for DESFire® EV1: 1.2" (3.0 cm) SE for MIFARE® Classic: 1.5" (3.8 cm) |
13.56 MHz Single Technology Tags/Fobs – SIO Data Model | iCLASS SE: 1.1" (2.8 cm) SE for MIFARE Classic: 0.8" (2.0 cm) |
125 kHz Single Technology ID-1 Credentials (Cards) – Respective Prox Data Model | HID Prox / AWID: 2.5" (6.4 cm) Indala Prox: 1.5" (3.8 cm) EM4102: 1.5" (3.8 cm) |
125 KHz Single Technology Tags/Fobs – Respective Prox Data Model † | HID Prox / AWID: 0.8" (2.0 cm) |
Mounting | Mini-Mullion Size; physically HID's smallest iCLASS readers and are ideally suited for mullion-mounted door installations, U.S. single-gang J-box (with mud ring) or any flat surface |
Color | Black or Gray |
Keypad | No |
Dimensions | 1.9" x 4.1" x 0.9" 4.8 cm x 10.3 cm x 2.3 cm |
Product Weight (Pigtail) | 4.0oz (114g) |
Product Weight (Terminal Strip) |
3.0oz (85g) |
Operating Voltage Range | 5-16 VDC, Linear supply recommended |
Current Draw - Standard Power Mode*** (mA) |
110 |
Current Draw - Intelligent Power Management (IPM) Mode*** (mA) |
40 |
Peak Current Draw - Standard Power or IPM Mode*** (mA) |
260 |
NSC** Power Consumption - Standard Power Mode (W @ 16VDC) |
1.8 |
NSC** Power Consumption - w/ IPM (W @ 16VDC) |
0.6 |
Operating Temperature | -31o to 150o F (-35o to 65o C) |
Storage Temperature | -67o to 185o F (-55o to 85o C) |
Operating Humidity | 5% to 95% relative humidity non-condensing |
Environmental Rating | IP55 |
Transmit Frequency | 13.56 MHz & 125 kHz |
13.56 MHz Card Compatibility |
Secure Identity ObjectTM (SIO®) on iCLASS SE/SR, SE for MIFARE DESFire EV1 and SE for MIFARE Classic (On by Default) Non-default programmable options include: additionally support |
125 kHz Card Compatibility† |
HID Prox, AWID, Indala, EM4102 |
Communications |
Optional OSDP with SCP over RS485 Wiegand/Clock-and-Data Interface 500ft (150m) (22AWG) - Use Shielded cable for best results |
Panel Connection | Pigtail or Terminal Strip |
Certifications | UL294/cUL**** (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), MIC (Korea), NCC (Taiwan), iDA (Singapore), RoHS , FIPS-201 Transparent FASC-N Reader |
Cryto Processor Hardware Common Criteria Rating |
EAL5+ |
Patents | US7180403, US7439862, US7124943, US5952935, US6058481, US6337619 |
Housing Material | UL94 Polycarbonate |
Manufactured with % of recycled content (Pigtail) |
10.5% |
Manufactured with % of recycled content (Terminal Strip) |
10.5% |
UL Ref Number | RP10E |
Warranty | Limited Lifetime |
