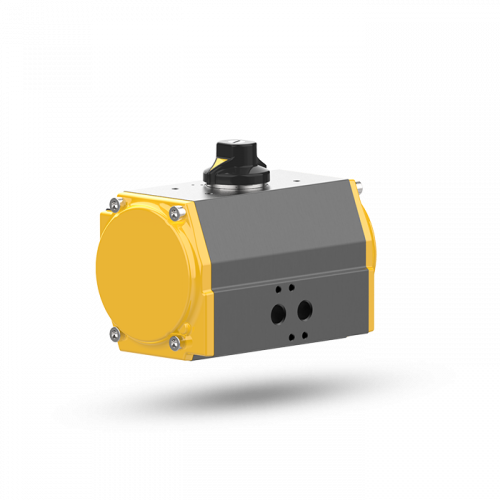

Rotary Pneumatic Actuator Double Acting - AD80AN8V0 by Uflow
| Product Name | Rotary Pneumatic Actuator Double Acting - AD80AN8V0 by Uflow |
|---|---|
| Weight | 1.000000 |
| Brand | Uflow |
| Test Certificate | No |
| COUNTRY OF MANUFACTURE | India |
| Sizes | 80mm |
| Body Matrial | Extruded Aluminum Hard Annodizing |
| Metal | CF8 |
| Pressure Range | 2 Bar to 8 Bar |
| Model | AD80ANBV0 |
| Piston Inward Stroke ml/bar | 360 |
| Piston Outward Stroke ml/bar | 450 |
| Torque-3 Bar | 51.5 NM |
| Torque-4 Bar | 69 NM |
| Torque-5 Bar | 86 NM |
| Torque-6 Bar | 103 NM |
| Torque-7 Bar | 120.5 NM |
| HSN Code | 84819090 |
| Warranty | 6 Months |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Category | Actuator, Rotary Pneumatic Actuator, Double Acting |
| Product Code | LNE-0042 |
Rotary Pneumatic Actuator Double Acting - AD80AN8V0 by Uflow
High-Performance Double Acting Rotary Pneumatic Actuator for Industrial Automation
Technical Specifications of Rotary Pneumatic Actuator AD80AN8V0
The AD80AN8V0 Rotary Pneumatic Actuator by Uflow is engineered to deliver high precision and efficiency for demanding industrial applications. This double-acting actuator offers an extended temperature range and is built from robust materials, making it ideal for environments requiring high durability and reliability. Designed for versatile operation, it supports over and under traveling, providing excellent control in automated processes. Suitable for use with various elastomers such as NBR, Viton, and Fluorosilicone, this actuator is optimized for a range of industrial needs, ensuring stable performance and extended service life.
Rotary Pneumatic Actuator AD80AN8V0 Technical Specifications
| Attribute | Specification |
|---|---|
| Temperature Range (NBR) | -20°C to +80°C |
| Temperature Range (Viton) | -20°C to +125°C |
| Temperature Range (Fluorosilicone) | -60°C to +110°C |
| End Stroke (± 90°) | +5° Over travelling Possible for opening |
| Under Travelling | Can be adjusted |
| Working Pressure | Maximum working pressure: 8 bar |
The AD80AN8V0 actuator is designed for efficient and precise control in complex industrial processes, ensuring optimal performance under varied temperature and pressure conditions.
Industrial-Grade Rotary Double Acting Pneumatic Actuator for Automation
The Rotary Pneumatic Actuator AD80AN8V0 by Uflow is a high-performance actuator tailored for industrial automation. This double-acting actuator is compatible with a wide range of temperatures, making it suitable for challenging environments. The actuator’s construction includes durable elastomers like NBR, Viton, and Fluorosilicone, enhancing its longevity and operational reliability. With a maximum working pressure of 8 bar and adjustable end strokes, the AD80AN8V0 provides versatile motion control, essential for efficient automation in industries. This actuator offers a reliable solution for industries aiming to improve their automation processes.
