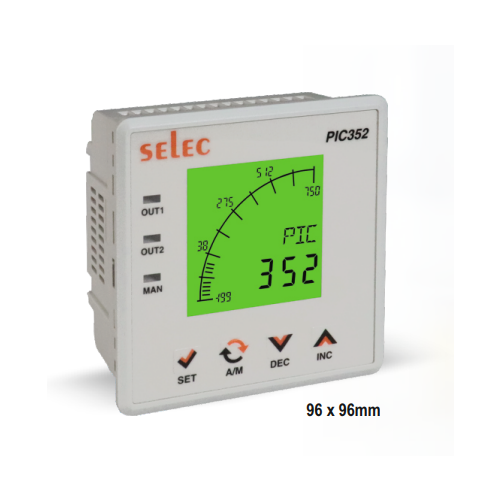

Precision Process Indicator - Selec
₹4,723.50 ₹5,573.73
In stock
Product Name | Precision Process Indicator - Selec |
---|---|
Weight | 1.000000 |
Brand | Selec |
Test Certificate | No |
COUNTRY OF MANUFACTURE | India |
Model | PIC352-11-U-0-1 |
HSN Code | 90328990 |
Freight | To pay by Customer, extra at actuals. Godown Delivery |
Category | Industrial Automation, Process Measurement & Control, Precision Process Indicator |
Product Code | PIC352-11-U-0-1 |
In Stock ( 100 Units )
Features :
Universal input
Dual LCD display with graphical representation
24 bit low drift ADC universal input
2 x Alarm relay output
Retransmission analog output
24V inbuilt sensor supply
4 Digital inputs, IDM applicable
Red, green, white backlight indication
90 to 270V AC / DC Supply voltage
Technical Specification
Display Specifications | |
Display Dimensions | 53x53 mm LCD Display |
Display | 4 digit numerical for process value, 4 alphabetical for process value information |
Graphical representation | Selectable bar graph representation for process value |
Annunciator | Red / Orange / White / Green backlight selectable according to conditions |
LED Indication | Out 1, Out 2, MAN (Manual) indication |
Input Specification | |
Thermocouple | J, K, T, R, S, C, E, B, N, L, U, W, Platinal II |
RTD | PT100, PT1000 |
Signal Input | -5 to 90 mV, 0 to 5/10 VDC, 0/4 to 20 mA DC (Programmable Scale Time) |
Digital Input | 4 DI’s |
Sampling Time | <60 msec |
Resolution (Decimal point position) | 24 bit resolution at Analog input 1/0.1 for TC/RTD ; 1/0.1/0.01/0.001 for analog input |
Indication Accuracy | For TC Input: 0.1% of full scale at 25°C; For R & S input: 0.25% of full scale at 25°C; For RTD: 0.1% of full scale at 25°C; For Current: 0.1% of full scale at 25°C ; For Voltage: 0.1% of full scale at 25°C |
