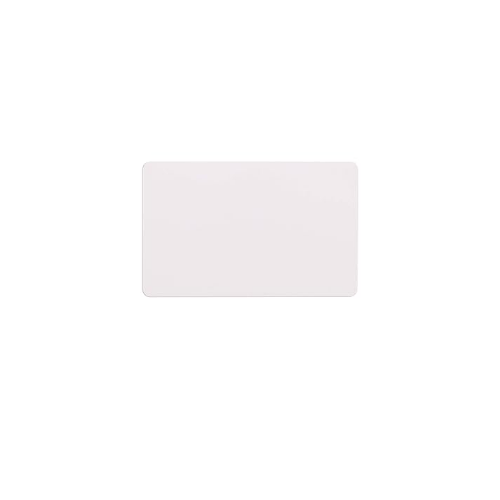

Mifare 1K Contactless Card 1Kv RFID 13.56 MHz Plain White

₹20.00 ₹23.60
Out of stock
More Information
Product NameMifare 1K Contactless Card 1Kv RFID 13.56 MHz Plain White
Weight1.000000
COUNTRY OF MANUFACTUREIndia
BrandNXP
HSN Code85437099
System TypeCONVENTIONAL
ModelMF1S50YYX_V1
Freight To pay by Customer, extra at actuals. Godown Delivery
CategoryFire Safety, Access Control System, Biometric, Smart Cards
Product CodeCPK-0077
Freight Extra (Godown Delivery)
Out Of Stock

1.General description

NXP Semiconductors has developed the MIFARE Classic EV1 contactless IC MF1S50yyX/V1 to be used in a contactless smart card according to ISO/IEC 14443 Type A.

The MIFARE Classic EV1 with 1K memory MF1S50yyX/V1 IC is used in applications like public transport ticketing and can also be used for various other applications.

    1.1 Anticollision

          An intelligent anticollision function allows to operate more than one card in the field                                          simultaneously. The anticollision algorithm selects each card individually and ensures                                        that the execution of a transaction with a selected card is performed correctly without
          interference from another card in the field.

   1.2 Simple integration and user convenience

         The MF1S50yyX/V1 is designed for simple integration and user convenience which
        allows complete ticketing transactions to be handled in less than 100 ms.

   1.3 Security and privacy
        • Manufacturer programmed 7-byte UID or 4-byte NUID identifier for each device
        • Random ID support
        • Mutual three pass authentication (ISO/IEC DIS 9798-2)
        • Individual set of two keys per sector to support multi-application with key hierarchy

   1.4 Delivery options
        • 7-byte UID, 4-byte NUID
        • Bumped die on sawn wafer

2 Features and benefits

• Contactless transmission of data and energy supply

• Operating distance up to 100 mm depending on antenna geometry and reader configuration

• Operating frequency of 13.56 MHz • Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting

• Anticollision

• Typical ticketing transaction time of < 100 ms (including backup management)

• 7 Byte UID or 4 Byte NUID
• Random ID support (7 Byte UID version) • NXP Originality Check support

  2.1 EEPROM

   • 1 kB, organized in 16 sectors of 4 blocks (one block consists of 16 byte)

   • User definable access conditions for each memory block

   • Data retention time of 10 years • Write endurance 200000 cycles

3 Applications

• Public transportation

• Access management

• Electronic toll collection

• Car parking

• School and campus cards • Employee cards

• Internet cafés • Loyalty

4 Quick reference data

Table 1. Quick reference data
Symbol Parameter Conditions   Min Typ Max Unit
Ci input capacitance   [1] 14.9 16.9 19.0 pF
fi input frequency     -   - MHz
EEPROM characteristics
tret retention time Tamb = 22 °C   10   - year
Nendu(W) write endurance Tamb = 22 °C   100000 200000 - cycle

[1] Tamb=22°C, f=13,56Mhz, VLaLb = 1,5 V RMS

5 Ordering information

Type number Package
Name Description Version
MF1S5001XDUD/V1 FFC Bump 8 inch wafer, 120 μm thickness, on film frame carrier, electronic fail die
marking according to SECS-II format), Au bumps, 7-byte UID
-
MF1S5001XDUD2/V1 FFC Bump 12 inch wafer, 120 μm thickness, on film frame carrier, electronic fail die
marking according to SECS-II format), Au bumps, 7-byte UID
-
MF1S5001XDUF/V1 FFC Bump 8 inch wafer, 75 μm thickness, on film frame carrier, electronic fail die
marking according to SECS-II format), Au bumps, 7-byte UID
-
MF1S5000XDA4/V1 MOA4 plastic leadless module carrier package; 35 mm wide tape, 7-byte UID SOT500-2
MF1S5000XDA8/V1 MOA8 plastic leadless module carrier package; 35 mm wide tape, 7-byte UID SOT500-4
MF1S5031XDUD/V1 FFC Bump 8 inch wafer, 120 μm thickness, on film frame carrier, electronic fail die
marking according to SECS-II format), Au bumps, 4-byte non-unique ID
-
MF1S5031XDUD2/V1 FFC Bump 12 inch wafer, 120 μm thickness, on film frame carrier, electronic fail die
marking according to SECS-II format), Au bumps, 4-byte non-unique ID
-
MF1S5031XDUF/V1 FFC Bump 8 inch wafer, 75 μm thickness, on film frame carrier, electronic fail die
marking according to SECS-II format), Au bumps, 4-byte non-unique ID
-
MF1S5030XDA4/V1 MOA4

plastic leadless module carrier package; 35 mm wide tape, 4-byte non-unique ID

SOT500-2
MF1S5030XDA8/V1 MOA8

plastic leadless module carrier package; 35 mm wide tape,4-byte non-unique ID

SOT500-4



7 Pinning information

           7.1 Pinning
                 The pinning for the MF1S50yyX/V1DAx is shown as an example in Figure 3 for the
                 MOA4 contactless module. For the contactless module MOA8, the pinning is analogous
                  and not explicitly shown.

     Table 3. Pin allocation table



Pin Symbol
LA LA Antenna coil connection LA
LB LB Antenna coil connection LB

8 Functional description

      8.1 Block description
            The MF1S50yyX/V1 chip consists of a 1 kB EEPROM, RF interface and Digital Control
            Unit. Energy and data are transferred via an antenna consisting of a coil with a small
            number of turns which is directly connected to the MF1S50yyX/V1. No further external
            components are necessary. Refer to the document Ref. 1 for details on antenna design.
           • RF interface:
              – Modulator/demodulator
              – Rectifier
              – Clock regenerator
              – Power-On Reset (POR)
              – Voltage regulator
          • Anticollision: Multiple cards in the field may be selected and managed in sequence
          • Authentication: Preceding any memory operation the authentication procedure ensures
             that access to a block is only possible via the two keys specified for each block

         • Control and Arithmetic Logic Unit: Values are stored in a special redundant format and
           can be incremented and decremented
         • EEPROM interface
         • Crypto unit: The CRYPTO1 stream cipher of the MF1S50yyX/V1 is used for authentication and                       encryption of data exchange.
         • EEPROM: 1 kB is organized in 16 sectors of 4 blocks. One block contains 16 bytes.
            The last block of each sector is called "trailer", which contains two secret keys and programmable                access conditions for each block in this sector.

        8.2 Communication principle
             The commands are initiated by the reader and controlled by the Digital Control Unit of the                           MF1S50yyX/V1. The command response is depending on the state of the IC and for memory                       operations also on the access conditions valid for the corresponding sector.

        8.2.1 Request standard / all
              After Power-On Reset (POR) the card answers to a request REQA or wakeup WUPA                                      command with the answer to request code (see Section 9.4, ATQA according to ISO/IEC                              14443A).

       8.2.2 Anticollision loop
               In the anticollision loop the identifier of a card is read. If there are several cards in the operating                   field of the reader, they can be distinguished by their identifier and one can be selected (select                     card) for further transactions. The unselected cards return to the idle state and wait for a new                     request command. If the 7-byte UID is used for anticollision and selection, two cascade levels                       need to be processes as defined in ISO/IEC 14443-3. Remark: For the 4-byte non-unique ID                         product versions, the identifier retrieved from the card is not defined to be unique. For further                     information regarding handling of non-unique identifiers see Ref. 6.

      8.2.3 Select card
              With the select card command the reader selects one individual card for authentication and                          memory related operations. The card returns the Select AcKnowledge (SAK) code which                              determines the type of the selected card, see Section 9.4. For further details refer to the                              document Ref. 2.

      8.2.4 Three pass authentication
               After selection of a card the reader specifies the memory location of the following memory access                 and uses the corresponding key for the three pass authentication procedure. After a successful                     authentication all commands and responses are encrypted.
               Remark: The HLTA command needs to be sent encrypted to the PICC after a successful
               authentication in order to be accepted.

      8.2.5 Memory operations
              After authentication any of the following operations may be performed:
             • Read block
             • Write block
             • Decrement: Decrements the contents of a block and stores the result in the internal Transfer                       Buffer
             • Increment: Increments the contents of a block and stores the result in the internal Transfer Buffer
             • Restore: Moves the contents of a block into the internal Transfer Buffer
             • Transfer: Writes the contents of the internal Transfer Buffer to a value block

      8.3 Data integrity
           Following mechanisms are implemented in the contactless communication link between reader and              card to ensure very reliable data transmission:
          • 16 bits CRC per block
          • Parity bits for each byte

           • Bit count checking
           • Bit coding to distinguish between "1", "0" and "no information"
           • Channel monitoring (protocol sequence and bit stream analysis)

       8.4 Three pass authentication sequence
             1. The reader specifies the sector to be accessed and chooses key A or B.
             2. The card reads the secret key and the access conditions from the sector trailer. Then the card                       sends a number as the challenge to the reader (pass one).
             3. The reader calculates the response using the secret key and additional input. The response,                         together with a random challenge from the reader, is then transmitted to the card (pass two).
             4. The card verifies the response of the reader by comparing it with its own challenge and then it                     calculates the response to the challenge and transmits it (pass three).
             5. The reader verifies the response of the card by comparing it to its own challenge. After                                 transmission of the first random challenge the communication between card and reader is                          encrypted.

       8.5 RF interface
              The RF-interface is according to the standard for contactless smart cards ISO/IEC 14443A.
              For operation, the carrier field from the reader always needs to be present (with short pauses                      when transmitting), as it is used for the power supply of the card. For both directions of data                        communication there is only one start bit at the beginning of each frame. Each byte is                                  transmitted with a parity bit (odd parity) at the end. The LSB of the byte with the lowest address                  of the selected block is transmitted first. The maximum frame length is 163 bits (16 data bytes +                2 CRC bytes = 16 × 9 + 2 × 9 + 1 start bit).

     8.6 Memory organization
          The 1024 × 8 bit EEPROM memory is organized in 16 sectors of 4 blocks. One block contains 16                  bytes.

     8.6.1 Manufacturer block
              This is the first data block (block 0) of the first sector (sector 0). It contains the IC manufacturer                  data. This block is programmed and write protected in the production test. The manufacturer                        block is shown in Figure 6 and Figure 7 for the 4-byte NUID and 7-byte UID version respectively.
