| Product Name | Double leaf electromagnetic lock | ASSA Abloy |
|---|---|
| Weight | 1.000000 |
| COUNTRY OF MANUFACTURE | India |
| Brand | ASSA Abloy |
| HSN Code | 83013000 |
| System Type | CONVENTIONAL |
| Model | AAIEMAGA4DSHRAL |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Category | Fire Safety, Access Control System, Locks, Electromagnetic Lock |
| Product Code | CPK-0072 |

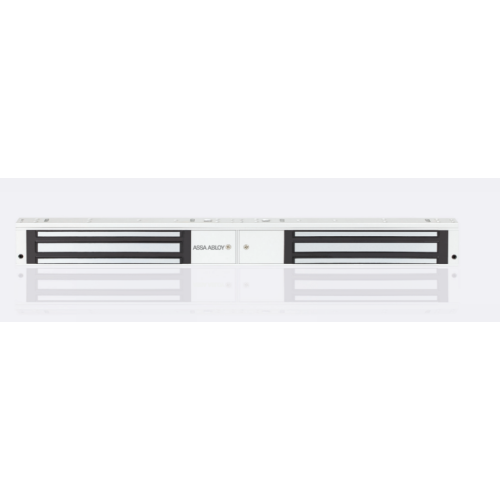

Double Series
The Electromagnetic Locks operate with holding forces from 500kg up to 560kg. Covering a range of appli-cations these magnets are ideal for applications from access ways through to high use commercial swing doors. With fixing options including wood, aluminium and steel constructions as well as glass door applications, the range caters to most electromagnetic needs.
Key Features
• Fail-Safe: unlocks when power is removed
• Easy installation: suitable for both new and retrofit usage
• High holding force: refer to the technical data overleaf
• Self-alignment: armature plate pivots to accommodate door drop
• Silent operation: no humming or buzzing
• Dual voltage: site selectable 12 or 24 Vdc
• Instantaneous release: smart electronics on the electromagnets eliminate residual magnetism
• 3 Year ASSA ABLOY Warranty
Applications
• Aluminium doors
• Double swing doors
• Access control
• Surface mount for inswing and outswing doors
Product Details
| Monitored | Dual Monitored | |
| Holding Force | 500-560 Kg | 550-560 Kg |
| Dimensions | (L)500 x (H)47 x (D) 26mm | (L)500 x (H)47 x (D) 26 mm |
| Voltage | 12Vdc/24Vdc +/- 10% | 12Vdc/24Vdc +/- 10% |
| Current | 900mA @ (12Vdc) 450mA @ (24Vdc) |
900mA @ (12Vdc) 450mA @ (24Vdc) |
| Monitoring | Hall-Effect | Hall-Effect & Reed Switch |
| Operating Temperature | -10 to 55 Degrees | -10 to 55 Degrees |
| Operating Humidity | 0-90% | 0-90% |
