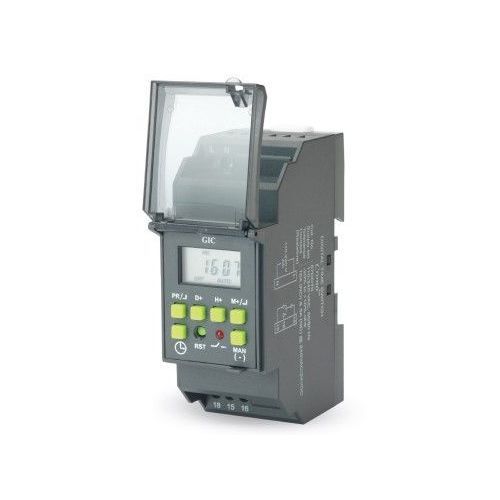

GIC 67DDT0 Digital Time Switch 110-240 VAC Crono
₹1,434.00 ₹1,692.12
In stock
| Product Name | GIC 67DDT0 Digital Time Switch 110-240 VAC Crono |
|---|---|
| Weight | 0.800000 |
| Brand | L&T |
| Test Certificate | No |
| COUNTRY OF MANUFACTURE | India |
| Model | 67DDT0 |
| HSN Code | 91070000 |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Category | Electrical, Electrical Measurement, Time Switch & Analog Timers |
| Product Code | TNB-0863 |
In Stock ( 200 Units )
GIC 67DDT0 Digital Time Switch 110-240 VAC Crono
- Precise Time Programming For Daily / Weekly / Pulse Switching
25 ON/OFF Programs - Weekend Exclusion (FRI SAT or SAT SUN) And Weekly Of Programming
- LED Indication Of Relay Status
- 12/24 H Display Formats
- 6 Years Battery Reserve
- Simple Reset & Manual Override
- Settable DST & Keypad Lock Feature
- Cat. No.:- 67DDT0
- Description :- 110 - 240 VAC, Digital Time Switch - Crono, 1 C/O
| Cat. No. | 67DDT0 |
| Supply Voltage | 110 - 240 VAC |
| Supply Variation | -20 % to +10% |
| Frequency | 50/60 Hz |
| Power Consumption (Max.) | 6 VA |
| Number of Programs | 25 ON/OFF Programs |
| Minimum Switching Time | 1 min |
| Pulse Duration | N A |
| Number of Operating Modes | 5 |
| Description of Modes | |
| AUTO | Program Run |
| ON AUTO | Instant ON up to next Auto Event |
| AUTO OFF | Instant OFF up to next Auto Event |
| ON | Continuous ON |
| OFF | Continuous OFF |
| Display | 3 Lines Text LCD |
| DST | Programmable |
| Clock Accuracy | ± 2 s/day max. over the Operating Temperature range |
| Power Reserve from Factory | 6 Years |
| Output | |
| Relay Output | 1 C/O |
| Contact Rating | 16A (For 'NO') & 5A (For 'NC') @ 240 VAC / 24 VDC (Resistive), Inductive (cos ø = 0.6):- 6 A @ 250 VAC |
| Electrical Life | 3x10 |
| Mechanical Life | 5x10 |
| Utilization Category | |
| AC - 15 | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3/1.5 A |
| DC - 13 | Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.11 A |
| Operating Temperature | -10°C to + 55°C |
| Storage Temperature | -10°C to + 60°C |
| Humidity (Non Condensing) | 95% (Rh) |
| LED Indication | Red LED :- Realy On |
| Enclosure | Flame Retarda tUL 4-V0 |
| Dimension (W x H x D) (in mm) | 36X 0 |
| Weight (unpacked) Approx. | 110g |
| Mounting | Base / DIN rail |
| Degree of Protection | IP 20 fo Terminals, IP 40 foEncl sure |
| Applications | Ideal for Lighting applications like street lighting, Advertising Displays, Glowsigns. Also can be used for Air conditioners / Coolers, Geysers, conveyors, pumps etc. |
