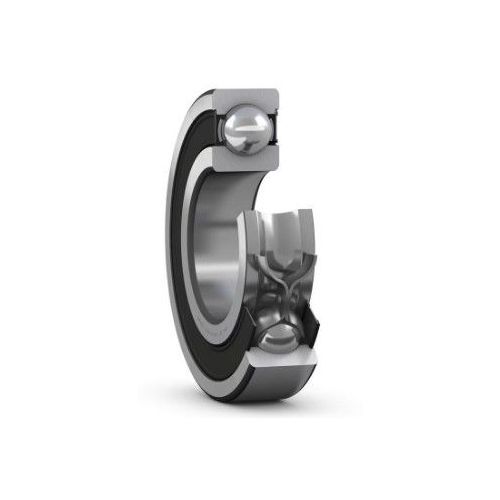

6211/2RS1 55x100x21mm Deep Groove Ball Bearing With Seals Or Shields - SKF
₹716.00 ₹844.88
In stock
| Product Name | 6211/2RS1 55x100x21mm Deep Groove Ball Bearing With Seals Or Shields - SKF |
|---|---|
| Weight | 0.616000 |
| COUNTRY OF MANUFACTURE | India |
| Brand | SKF |
| HSN Code | 84821030 |
| Weight (kg) | 0.616 |
| Bearing Number | 6211-2RS1 |
| Width (B) mm | 21 mm |
| Inner Diameter (d) mm | 55 mm |
| Outer Diameter (D) mm | 100 mm |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Category | Bearings, Deep Groove Ball Bearings |
| Product Code | PE-0175 |
In Stock ( 200 Units )
Precision Engineers is an SKF Authorised Industrial Distributor.
6211/2RS1 55x100x21mm Deep Groove Ball Bearing With Seals Or Shields - SKF
Dimensions
| d |
55 mm
|
Bore diameter |
| D |
100 mm
|
Outside diameter |
| B |
21 mm
|
Width |
| d1 |
≈69.06 mm
|
Shoulder diameter |
| D2 |
≈89.4 mm
|
Recess diameter |
| r1,2 |
min.1.5 mm
|
Chamfer dimension |
Abutment dimensions
| da |
min.64 mm
|
Diameter of shaft abutment |
| da |
max.69 mm
|
Diameter of shaft abutment |
| Da |
max.91 mm
|
Diameter of housing abutment |
| ra |
max.1.5 mm
|
Radius of shaft or housing fillet |
Calculation data
| SKF performance class |
SKF Explorer
|
|
| Basic dynamic load rating | C |
46.2 kN
|
| Basic static load rating | C0 |
29 kN
|
| Fatigue load limit | Pu |
1.25 kN
|
| Limiting speed |
4 300 r/min
|
|
| Minimum load factor | kr |
0.025
|
| Calculation factor | f0 |
14.3
|
Mass
| Mass bearing |
0.64 kg
|
Tolerance class
| Dimensional tolerances |
P6
|
| Radial run-out |
P6
|
