Rotary Pneumatic Actuator Single Acting - AS63ANB02V0 - Uflow
| Product Name | Rotary Pneumatic Actuator Single Acting - AS63ANB02V0 - Uflow |
|---|---|
| Weight | 1.000000 |
| Brand | Uflow |
| Test Certificate | No |
| COUNTRY OF MANUFACTURE | India |
| Sizes | 63mm |
| Body Matrial | Extruded Aluminum Hard Annodizing |
| Metal | CF8 |
| Pressure Range | 3 Bar to 6 Bar |
| Model | AS63ANB02V0 |
| Piston Inward Stroke ml/bar | 2 |
| Spring Torque Min | 11 |
| Spring Torque Max | 22 |
| CH90 | 14 |
| 5 Bar Min | 28 |
| 5 Bar Max | 39 |
| Piston Outward Stroke ml/bar | 280 |
| HSN Code | 84819090 |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Warranty | 6 Months |
| Category | Actuator, Rotary Pneumatic Actuator, Single Acting |
| Product Code | LNE-0052 |

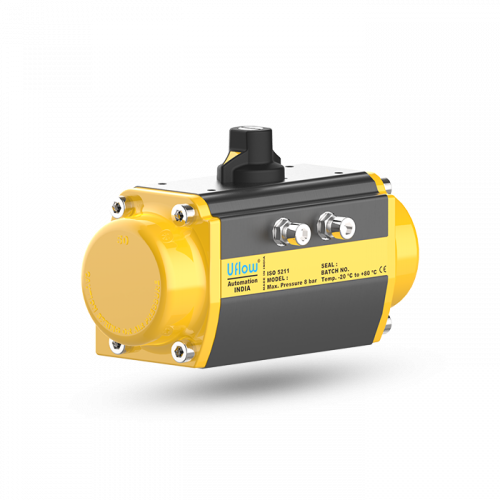

Rotary Pneumatic Actuator Single Acting - AS63ANB02V0 by Uflow
High-Performance Single Acting Rotary Pneumatic Actuator for Industrial Automation
Technical Specifications of Rotary Pneumatic Actuator AS63ANB02V0
The AS63ANB02V0 Rotary Pneumatic Actuator from Uflow is a single-acting actuator tailored for precision and durability in industrial automation. Built from high-quality materials like NBR, Viton, and Fluorosilicone, this actuator operates efficiently across a wide temperature range, making it ideal for demanding environments. It features adjustable over and under traveling capabilities, providing excellent control in automation systems. With a maximum working pressure of 8 bar, the AS63ANB02V0 is designed to deliver long-lasting, reliable performance, making it an essential component in industrial automation setups.
Rotary Pneumatic Actuator AS63ANB02V0 Technical Specifications
| Attribute | Specification |
|---|---|
| Temperature Range (NBR) | -20°C to +80°C |
| Temperature Range (Viton) | -20°C to +125°C |
| Temperature Range (Fluorosilicone) | -60°C to +110°C |
| End Stroke (± 90°) | +5° Over travelling Possible for opening |
| Under Travelling | Can be adjusted |
| Working Pressure | Maximum working pressure: 8 bar |
This single-acting actuator is engineered for reliability and precision, ideal for diverse industrial automation applications requiring control and resilience.
Efficient and Reliable Single Acting Rotary Pneumatic Actuator for Industrial Control
The Uflow AS63ANB02V0 Rotary Pneumatic Actuator is a single-acting actuator built to enhance industrial automation systems. It operates under a high working pressure of up to 8 bar and supports a wide temperature range, ensuring stable performance in various environments. Constructed from robust materials like NBR, Viton, and Fluorosilicone, this actuator is designed for durability and long-lasting service. The adjustable end strokes allow for precise control, making it a versatile choice for complex automation tasks where accuracy is essential.
