Bronze Sleeve Packed Water Level Gauge, IBR, Flanged, IBR-11A - SANT Valves
₹23,232.00 ₹27,413.76
In stock
STOCK : In stock (%1 Units)
| Product Name | Bronze Sleeve Packed Water Level Gauge, IBR, Flanged, IBR-11A - SANT Valves |
|---|---|
| Weight | 1.000000 |
| Brand | Sant Valves |
| Test Certificate | No |
| COUNTRY OF MANUFACTURE | India |
| Metal | Bronze |
| Model | IBR-11A |
| Arm | Right Hand Type / Left Hand Type |
| material | Bronze IBR 282(a)(iv) Gr.B |
| IBR Approved | Yes |
| HSN Code | 90261020 |
| Warranty | 6 Months |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Category | Industrial Valves, Level Gauges, Water Level Gauge |
| Product Code | DEV-0040 |

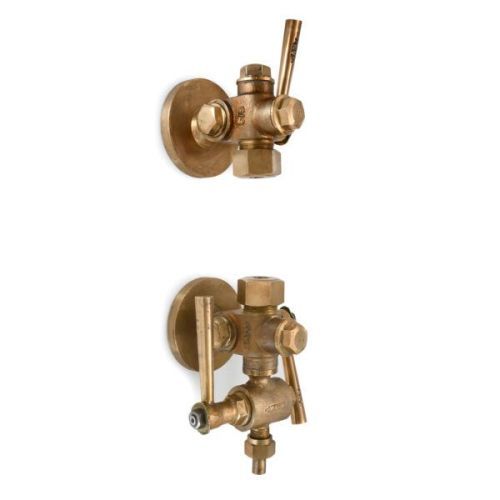

Bronze Sleeve Packed Water Level Gauge, IBR, Flanged, IBR-11A - SANT Valves
Product : ‘SANT’ Bronze Sleeve Packed Water Level Gauge
Type of Pattern : Standard Pattern
Body Material cum Standard : Bronze IBR 282(a)(iv) Gr.B
Description : With automatic shut off device in water
Arm : Right Hand Type / Left Hand Type
End Details : Flanges as per BS 10 Table H F.F. undrilled
Testing & Certification
Hydraulic Test Pressure : 500 Psig.Hyd.
Working Pressure : Max.BOP 250 Psig.(17.58Kg/cm²)
Maximum Working Temperature : 435°F (225°C)
Test Certificate in Form lll-C as per IBR is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Cover, Drain Cock & Back Nuts | Bronze | IBR 282(a)(iv) Gr.B |
| Sleeve | Moulded Asbestos | — |
| Spindle | Stainless Steel | AISI410 |
| Name Plate | Brass Sheet | IS:410 |
| Fasteners | Mild Steel | — |
