Technical Specifications

Product Name	LRP-1/4-4 Precision pressure regulator 159501 Festo
Brand	Festo
Product Code	HYP-0160
Country of Manufacture	IN
HSN Code	84818090
Weight	1.000
Category	Precision Regulator
Freight	To pay by Customer, extra at actuals. Godown Delivery
Shipping Time	5 business days
Test Certificate	No
Model	LRP-1/4-4

Export-Ready

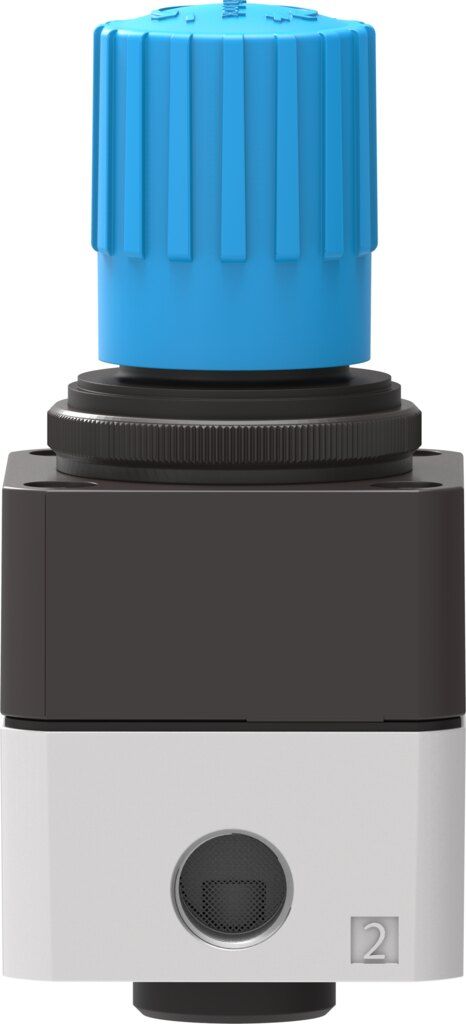

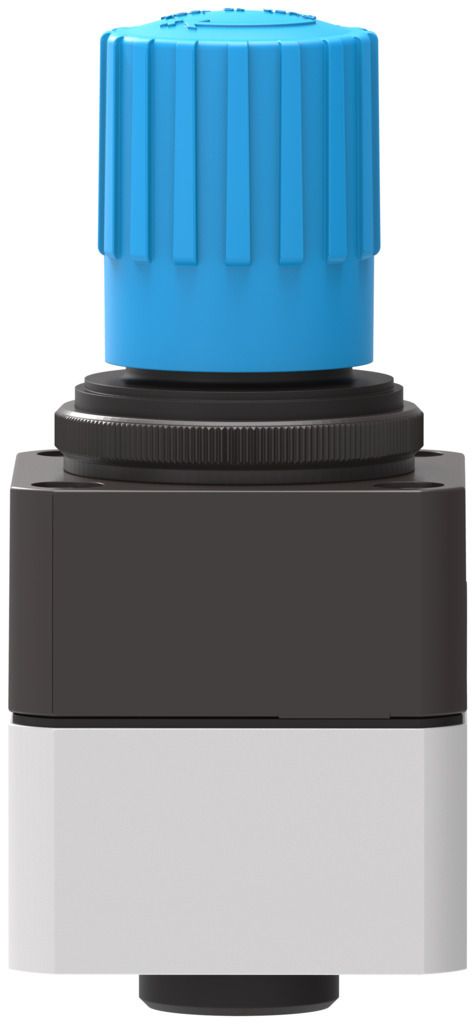

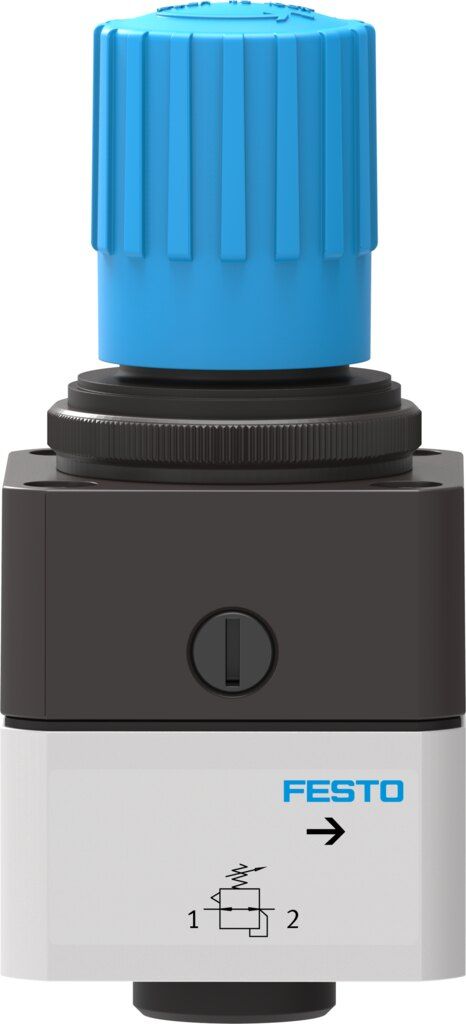

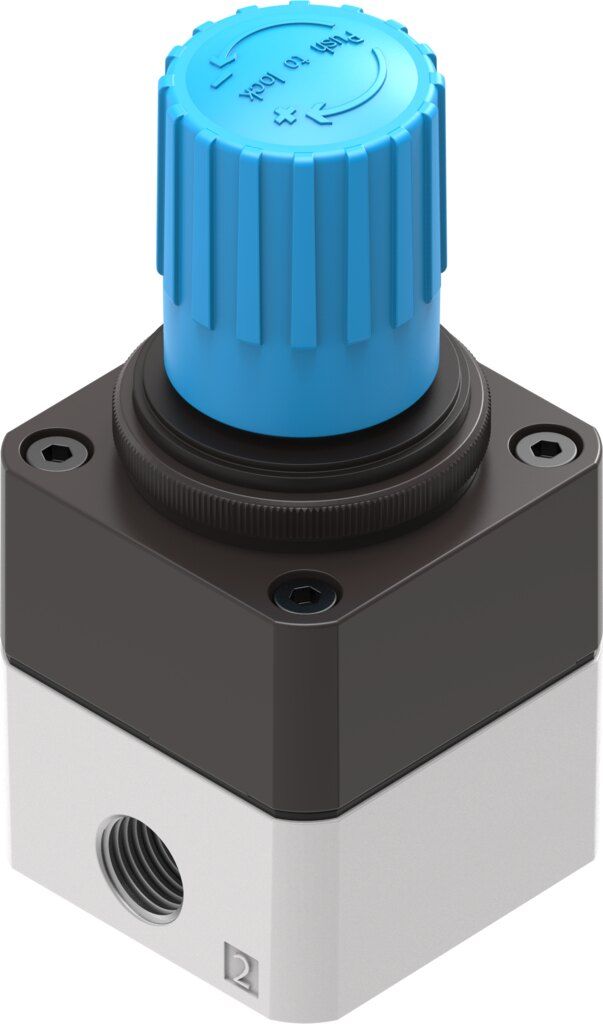

LRP-1/4-4 Precision pressure regulator 159501 Festo

Name: LRP-1/4-4 Precision pressure regulator 159501 Festo
Brand: Festo
SKU: PSIN000023479
Availability: InStock

Sellerhydro-pneumaticsPart No.LRP-1/4-4Dispatch 5 business days

SKU HYP-0160Made in India

200 units in stock

Total incl. tax

₹ 6,508.88

Your price · before tax

₹ 5,516.00+ 18% GST

Quantity

Min 1 • Stock 200

Freight ExtraGodown Delivery · To-Pay

Dispatch in 5 business daysFulfilled by the seller

Seller gets paid only after you receive the goods.

Payments made

→

Held in escrow

→

Goods Received

Guaranteed fulfilment or 100% money back · GST invoice with every order

Sellerhydro-pneumaticsPart No.LRP-1/4-4Dispatch 5 business days

SKU HYP-0160Made in India

Product Name	LRP-1/4-4 Precision pressure regulator 159501 Festo
Brand	Festo
Product Code	HYP-0160
Country of Manufacture	IN
HSN Code	84818090
Weight	1.000
Category	Precision Regulator
Freight	To pay by Customer, extra at actuals. Godown Delivery
Shipping Time	5 business days
Test Certificate	No
Model	LRP-1/4-4

Feature	Value
Actuator lock	Rotary knob with detent
Mounting position	optional
Design	Piloted precision diaphragm control valve
Controller function	Output pressure constant With secondary venting
Symbol	00991540
Pressure gauge (ANALOG) or Pressure display (DIGITAL)	Prepared for G1/8
Operating pressure	0.1 MPa 1.2 MPa
Operating pressure	1 bar ... 12 bar
Pressure regulation range	0.05 bar ... 4 bar
Inlet pressure 1	1 bar ... 12 bar
Max. pressure hysteresis	0.02 bar
Standard nominal flow rate (standardised to DIN 1343)	2000 l/min
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Note on operating and pilot medium	Lubricated operation not possible
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Media temperature	-10 °C ... 60 °C
Ambient temperature	-10 °C ... 60 °C
Product weight	310 g
Type of mounting	With accessories
Pneumatic connection, port 1	G1/4
Pneumatic connection, port 2	G1/4
Note on materials	RoHS-compliant
Material seals	NBR
Material housing	Aluminium
