5 photosTechnical Specifications
| Product Name | FESTO QS-4 Push-In Connector 153031 |
| Brand | Festo |
| Product Code | HYP-0006 |
| Country of Manufacture | IN |
| HSN Code | 84129090 |
| Weight | 1.000 |
| Category | Connector |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Test Certificate | No |
| Part Code | 153031 |
| Model | QS-4 |
BrandFesto
Export-ReadyFESTO QS-4 Push-In Connector 153031
Sellerhydro-pneumaticsPart No.QS-4Dispatch Ready
SKU HYP-0006Made in India
170 units in stock
Total incl. tax
₹ 107.38
Your price · before tax
₹ 91.00+ 18% GST
Freight ExtraGodown Delivery · To-Pay
Ready to dispatchFulfilled by the seller
Quantity
Min 1 • Stock 170
Freight ExtraGodown Delivery · To-Pay
Ready to dispatchFulfilled by the seller
Seller gets paid only after you receive the goods.
Payments made
→
Held in escrow
→
Goods Received
Guaranteed fulfilment or 100% money back · GST invoice with every order
Sellerhydro-pneumaticsPart No.QS-4Dispatch Ready
SKU HYP-0006Made in India
Technical Specifications
| Product Name | FESTO QS-4 Push-In Connector 153031 |
| Brand | Festo |
| Product Code | HYP-0006 |
| Country of Manufacture | IN |
| HSN Code | 84129090 |
| Weight | 1.000 |
| Category | Connector |
| Freight | To pay by Customer, extra at actuals. Godown Delivery |
| Test Certificate | No |
| Part Code | 153031 |
| Model | QS-4 |

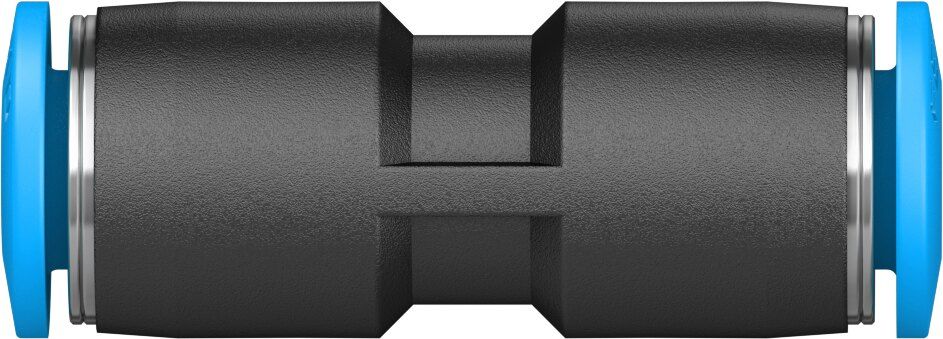

FESTO QS-4 Push-In Connector 153031
| Feature | Value |
| Size | Standard |
| Nominal size | 4.3 mm |
| Tubing insertion depth | 17 mm |
| Mounting position | optional |
| Design | Straight design |
| Size of pack | 10 |
| Design | Push-pull principle |
| Operating pressure complete temperature range | -0.095 MPa 0.6 MPa |
| Operating pressure complete temperature range | -0.95 bar ... 6 bar |
| Operating pressure complete temperature range | -13.775 psi ... 87 psi |
| Temperature-dependent operating pressure | -0.095 MPa 1.4 MPa |
| Temperature-dependent operating pressure | -0.95 bar ... 14 bar |
| Temperature-dependent operating pressure | -13.775 psi ... 203 psi |
| Note on operating pressure | Water: max. 0.6 MPa at max. 50°C |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Ambient temperature | -10 °C ... 80 °C |
| Product weight | 6.5 g |
| Pneumatic connection, port 1 | For tubing outside diameter of 6 mm |
| Pneumatic connection, port 2 | For tubing outside diameter of 6 mm |
| Colour of release ring | Blue |
| Note on materials | RoHS-compliant |
| Material housing | PBT |
| Material release ring | POM |
| Material tubing seal | NBR |
| Material tubing clamp component | High-alloy stainless steel |
Part numberQS-4
SKUPSIN000021134
BrandFesto
HSN Code84129090
Country of ManufactureIN
Weight1.000 kg
CategoryPneumatics›Connector
